Air Cool Misting System for garden layard Cooling
1 * 3/4 inch internal thread faucet connector
6 * clips
7 * sprinklers + 6*Nozzle tees
1 * 6m pipe
1 * end plug
Standard water tap adapter:Thread Size:3/4";
Mist nozzle thread Size is UNC10-24; food grade material;Mist hose:1/4"
Can work under normal pressure(2-3kg)
The fine misting nozzles are made of brass bodies, inlayed stainless steel core guide vanes, the liquid forms a centrifugal vortex in the guide vanes, spray tiny open-core type particles from the jet hole, can be widely used in factory humidification, cooling, disinfection, dust fall, landscaping, salt fog test, and other artificial fog. The nozzle use American precision punching device, The aperture is about 0.3mm, well-made, compare the using costs and gas humidification, able to save more than 10 times.
This series of nozzles does not require air assistance, the system is simple, spray a fine mist, sufficient atomization, has the advantages of energy saving, water saving, low cost and good effect; Stainless steel spray sheet is processed by advanced forging technology, strong durability, the working life is about 2.5 times compared with similar products.
The nozzle can be completely atomized by the pressure of the tap water, and the effect of using the high-pressure water pump is better.
1. Wetting and rust removal
2. Air humidification
3. Chemical treatment
4. Chemical spraying
5. Liquid spraying
6. Tobacco leaf humidification
7. Tablet coating
8. Flue gas evaporative cooling
10. Unit cooling
11. Fruit wax spray
12. Ceramic tile glazing
13. Factory humidification
14. Salt fog test
15. Artificial fog
16. Humidification in other places
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.

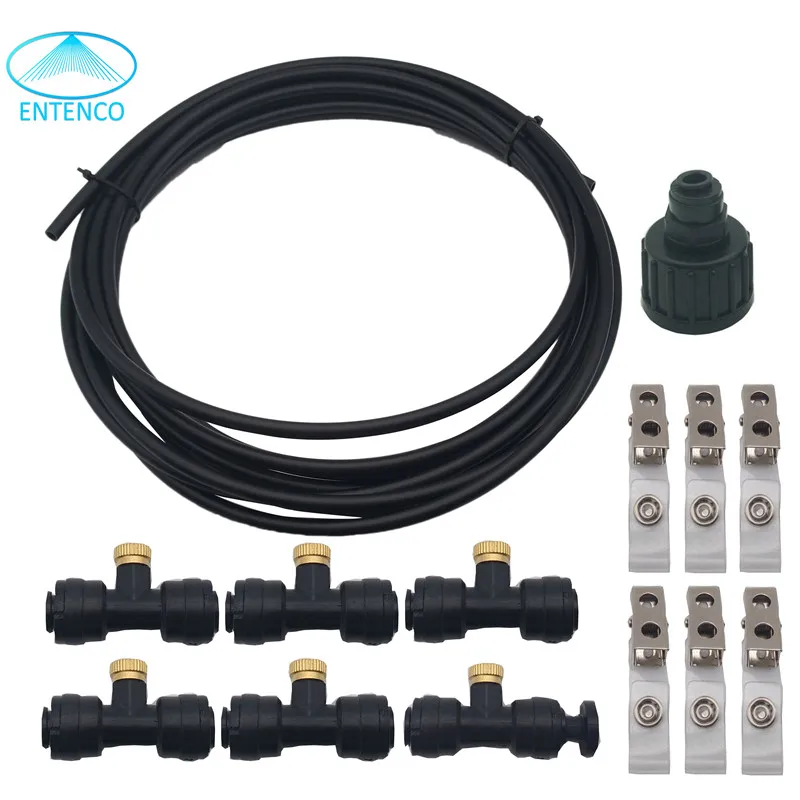

Parts of misting kit

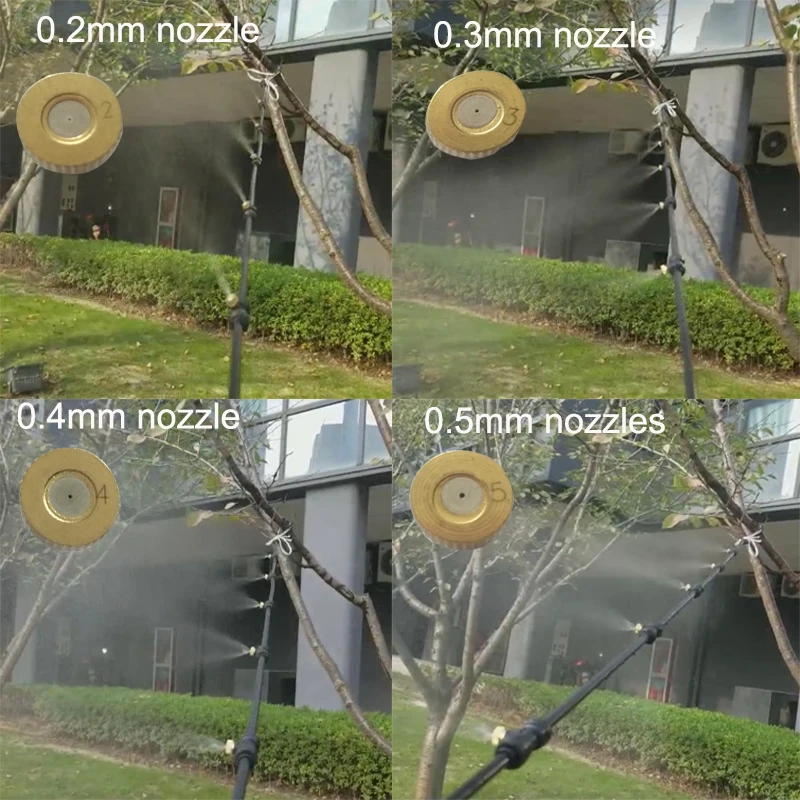

We have 0 orifice nozzles for your choose.2-0.5m
The effect please check the belowing picture:
Effect and application
Advantages of misting kit
Easy installation in minutes; Affixed with saddle clamps or cable ties;
No power required, work with the pressure of facuet;3M water supply hose is available for the system;
All quick pushing connectors, easy for DIY; Fine fog mist, cool your summer heat immediately;
1. Connect the Facuet adapter to the water tap.
2. Turn on the water tap to wash the system for 1 minute to purge the system and remove any impurities.
3. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.
4. Turn on the water tap to wash the system for 2 minute to insure that system is fully purged.
5. Turn the watet off and install the last nozzle into the fitting with the end plug.
6. Fix the misting line by the saddle clamps provided.
7. Turn on the tap slightly until jets are working, enjoy the cooling misting system.
8. Periodically remove the misting nozzles, and follow steps 2-5 to clean out the misting system.
